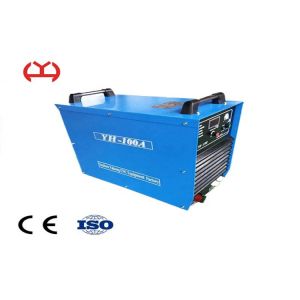

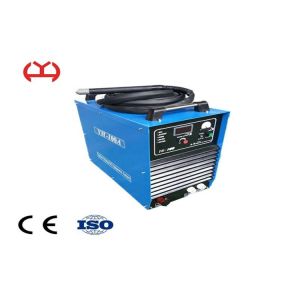

Plasma Power Supply For CNC Cutter
1.Main Technical Performance Indexes of products
| Input voltage | 3*380(50Hz)±10% |
| Input power | 45KVA |
| Cutting power current | 30-200A |
| Temporary load rate | 200A/100% |
| Cutting thickness | according to the material u cut |
| Perforation thickness | 25mm |
| Quality cutting thickness | 45mm |
| Max cutting thickness | 55mm |
| Cutting gas | air |
| Gas flow | 150L/min |
| Gas pressure | 0.5MPa |
| Cooling method | Water cooling |
| Power source weight | 90Kg |
| Outline dimension | L69*W37*H81cm |
2.Unique cutting functions:
1.Adopt international advanced full bridge soft switching technology
2.Plasma power supply current is 30A - 200A stepless adjustable
3.Good cut surface vertical degree, carbon steel cutting can be within 3 degree
4.Independent research and development of the cutting torch, strong ability to penetrate, with good vertical degree
5.Built-in overcurrent, overvoltage, air pressure and hydraulic pressure multiple protection
6.Suitable for CNC cutting machine and robot supporting use
7.100% temporary load rate, can work long hours
